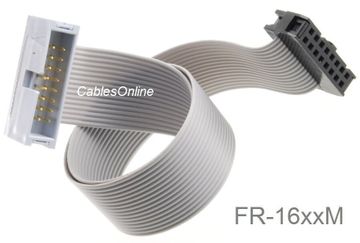

12in 16-Pin (2x8) 2.54mm-Pitch Male/Female 16-wire IDC Flat Ribbon Extension
This 16-Pin (2x8) Male to Female 2.54mm-Pitch 16-wire IDC Flat Ribbon Extension Cable features one 16-pin (2x8) Male connector on one end and one 16-pin (2x8) Female connector on the other end.
The cable can be used for ASP, ISP, JTAG, AVR, in-system programmers, various automation units, or any other applications that requires 16-pin (2x8) ribbon/ IDC cable extension.
- Connector A: 16-Pin Female IDC Connector, 2.54mm pitch
- Connector B: 16-Pin Male IDC Connector, 2.54mm pitch
- Sturdy nylon construction ribbon cable
- Number of Wires: 16, Pitch: 1.27mm, Wire Gauge: 28AWG, Current Rating (per Wire): 1A
- Voltage Rating: 300V. , Operating Temperature Range: -20°C to +105°C
- Length : 12 inches
CablesOnline Part Number: FR-1612M
