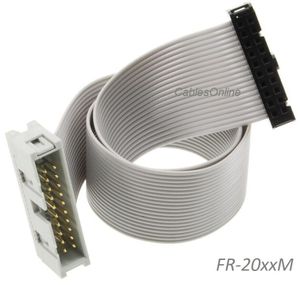

12in 20-Pin (2x10) 2.54mm-Pitch Male/Female 20-wire IDC Flat Ribbon Extension
Product Details
12in 20-Pin (2x10) 2.54mm-Pitch Male/Female 20-wire IDC Flat Ribbon Extension
This cable can be used for ASP, ISP, JTAG, AVR, in-system programmers, various automation units, or any other applications that requires 20-pin (2x10) ribbon/ IDC cable.
Specifications:
- Connector A: 20-Pin Female IDC Connector, 2.54mm pitch
- Connector B: 20-Pin Male IDC Connector, 2.54mm pitch
- Sturdy nylon construction ribbon cable
- Number of Wires: 20, Pitch: 1.27mm, Wire Gauge: 28AWG, Current Rating (per Wire): 1A
- Voltage Rating: 300V. , Operating Temperature Range: -20°C to +105°C
- Length : 12 inches
CablesOnline Part Number: FR-2012M
