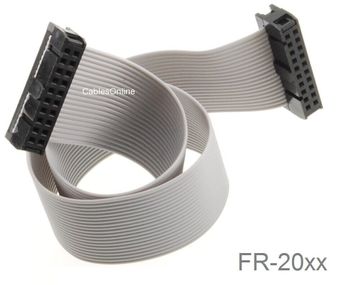

12in 20-Pin (2x10) Female to Female 2.54mm-Pitch 20-wire IDC Flat Ribbon Cable

12in 20-Pin (2x10) Female to Female 2.54mm-Pitch 20-wire IDC Flat Ribbon Cable
12in 20-Pin (2x10) Female to Female 2.54mm-Pitch 20-wire IDC Flat Ribbon Cable
Item # FR-2012
Price: $6.25
Quantity:

Product Details

12in 20-Pin (2x10) Female to Female 2.54mm-Pitch 20-wire IDC Flat Ribbon Cable


This 20-Pin (2x10) Female to Female 2.54mm-Pitch 20-wire IDC Flat Ribbon Cable features one 20-pin (2x10) connector on one end and one 20-pin (2x10) connector on the other end.


Specifications:


  • Connector A: IDC 20-Pin (2x10) Female Connector
  • Connector B: IDC 20-Pin (2x10) Female Connector
  • Sturdy nylon construction ribbon cable
  • Wire Gauge: 28AWG, Current Rating (per Wire): 1A, Voltage Rating: 300V
  • Operating Temperature Range: -20C to +105C
  • Length: 12 inches

CablesOnline Part Number: FR-2012
