12in 40-Pin (2x20) 2.54mm-Pitch Male/Female 40-wire IDC Flat Ribbon Extension

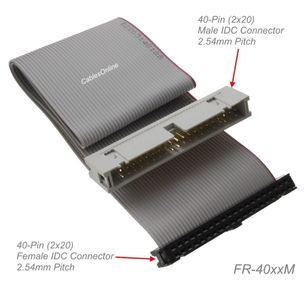

This 40-Pin (2x20) Male to Female 2.54mm-Pitch 40-wire IDC Flat Ribbon Extension Cable features one 40-pin (2x20) Male connector on one end and one 40-pin (2x20) Female connector on the other end.
The cable can be used for ASP, ISP, JTAG, AVR, in-system programmers, various automation units, or any other applications that requires 40-pin (2x20) ribbon/ IDC cable extension.
- Connector A: 40-Pin Female IDC Connector, 2.54mm pitch
- Connector B: 40-Pin Male IDC Connector, 2.54mm pitch
- Sturdy nylon construction ribbon cable
- Number of Wires: 40, Pitch: 1.27mm, Wire Gauge: 28AWG, Current Rating (per Wire): 1A
- Voltage Rating: 300V. , Operating Temperature Range: -20°C to +105°C
- Length : 12 inches
CablesOnline Part Number: FR-4012M
