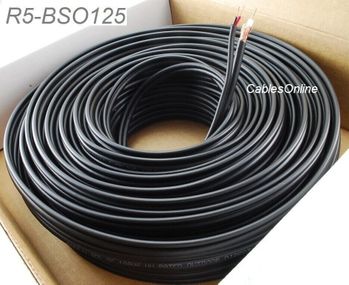

125ft Direct Burial Outdoor Siamese RG59/U 95% 2C/18AWG Copper CCTV Bulk Cable

125ft Direct Burial Outdoor Siamese RG59/U 95% 2C/18AWG Copper CCTV Bulk Cable
125ft Direct Burial Outdoor Siamese RG59/U 95% 2C/18AWG Copper CCTV Bulk Cable
Item # R5-BSO125
Price: $36.95
Quantity:

Product Details

125ft Direct Burial Outdoor Siamese RG59/U 95% 2C/18AWG Copper CCTV Bulk Cable


These Direct Burial Outdoor Siamese Coax/Power CCTV Bulk Cable rolls are ideal for Outdoor installations.

RG59 Coax
Center Conductor: 20 AWG
Diameter: 0.35 inches
Insulation: Foamed PE
Nom. Thickness: 0.0559 inches
Insulation Diameter 0.1441 inches

Braid Shield: Copper Clad Aluminum
Coverage Area: 95 %

Power18/2
Conductor Solid Copper
AWG 18
Number of Conductors 2
Number of Strands 7
Insulation: PVC

Temperature Rating: -40C to 60C
Impedence: 75 3.0 Ohms
Capacitance: 15.5 pF/ft
Conductor DCR@20C: 28.6 ohms/1000ft
Velocity of Propagation: 84%
ROHS Compliant: Yes

Electrical Performance:

Frequency Attenuation
50 MHz 2.282 dB/100m
100 MHz 3.265 dB/100m
200 MHz 3.265 dB/100m
400 MHz 6.952 dB/100m
700 MHz 9.398 dB/100m
1000 MHz 11.441 dB/100m
2000 MHz 17.300 dB/100m
2200 MHz 18.376 dB/100m


Specifications:


  • 125ft Direct Burial Outdoor Siamese Coax/Power CCTV Bulk Cable
  • 95% Braid Shielding
  • 20AWG Coax & 18AWG Power Conductors
  • RoHS Compliant, ETL Listed
  • Color: Black, Length: 125 feet

CablesOnline Part Number: R5-BSO125
