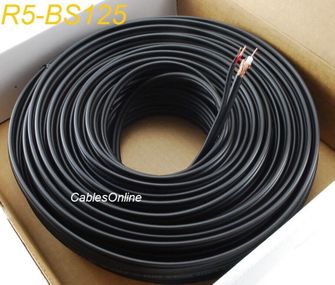

125ft Siamese RG59/U 95% 2-Conductor/18AWG Copper CCTV Bulk Cable, Black

125ft Siamese RG59/U 95% 2-Conductor/18AWG Copper CCTV Bulk Cable, Black
125ft Siamese RG59/U 95% 2-Conductor/18AWG Copper CCTV Bulk Cable, Black
Item # R5-BS125
Price: $30.95
Quantity:

Product Details

125ft Siamese RG59/U 95% 2-Conductor/18AWG Copper CCTV Bulk Cable, Black


These Black PVC Siamese Coax/Power CCTV Bulk Cable rolls are ideal for security camera installations.

RG59 Coax
Center Conductor: 20 AWG
Diameter: 0.03228 inches
Insulation: Foamed PE
Nom. Thickness: 0.0559 inches
Insulation Diameter 0.1441 inches

Braid Shield: Copper Clad Aluminum
Coverage Area: 95 %

Power18/2
Conductor Solid Copper
AWG 18
Number of Conductors 2
Number of Strands 7
Insulation: PVC

Temperature Rating: -40C to 60C
Impedence: 75 3.0 Ohms
Capacitance: 15.5 pF/ft
Conductor DCR@20C: 28.6 ohms/1000ft
Velocity of Propagation: 84%
ROHS Compliant: Yes

Electrical Performance:

Frequency Attenuation
1 MHz 1.15 dB/100m
50 MHz 5.71 dB/100m
100 MHz 8.20 dB/100m
200 MHz 11.61 dB/100m
400 MHz 16.73 dB/100m
700 MHz 22.15 dB/100m
1000 MHz 28.87 dB/100m


Specifications:


  • 125ft Siamese Coax/Power CCTV Bulk Cable
  • 95% Braid Shielding
  • 20AWG Coax & 18AWG Power Conductors
  • RoHS Compliant, ETL Listed
  • Color: Black, Length: 125 feet

CablesOnline Part Number: R5-BS125
