20-Pin (2x10) Female IDC 2.54mm Pitch Connectors for Flat Ribbon Cable

20-Pin (2x10) Female IDC 2.54mm Pitch Connectors for Flat Ribbon Cable
20-Pin (2x10) Female IDC 2.54mm Pitch Connectors for Flat Ribbon Cable
Item # FC-020
Price: $0.55
Quantity:

Product Details

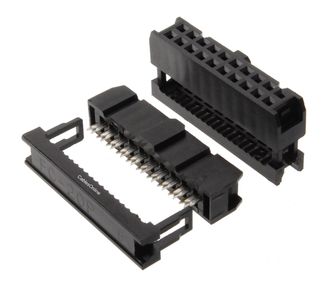

20-Pin (2x10) Female IDC 2.54mm Pitch Connectors for Flat Ribbon Cable



These IDC connectors feature 20-pin 2x10 holes on one side and 20-pin 2x10 IDC pins that crimp on a flat ribbon cable with 2.54mm pitch on the other side, ideal for making custom ribbon cable for applications that require 20-pin 2x10 connectors.

• Product: 20-Pin 2x10 Female IDC Connector
• Pin Number : 20
• Row Number : 2
• Pitch : 2.54mm/0.1"
• Total Dimensions : (L*W*H) 30.2mm x 6mm x 10.5mm
• Color : Black;
• Material : Plastic, Metal
• Weight : 0.09oz/ea.



Specifications:



  • 20-Pin 2x10 Female IDC Socket Connector
  • Pitch : 2.54mm/0.1"
  • Nickel plated contacts
  • Total Dimensions : (L*W*H) 30.2mm x 6mm x 10.5mm
  • Quantity: 1 piece


CablesOnline Part Number: FC-020
