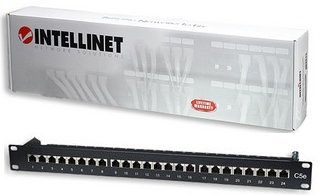

24-Port CAT.5e FTP Shielded Patch Panel, 1U, 90° Top Entry, Intellinet 513487
Product Details
Features:
- Solid and reliable terminations for copper cabling featuring a minimum of 3 mm 50 micro-inch gold-plated jack contacts
- Top-entry punch-down blocks simplify installation
- Compatible with both 110 and Krone punch-down tools
- Supports 22 to 26 AWG stranded and solid wire
- For use with fully shielded twisted pair (FTP) Cat5e network cable
- Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
- Connects 24 RJ-45 ports to a network
- Occupies 1U rack height
- Meets 19" rackmount standards
Color:
Specifications:
- Standards
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3ab (1000Base-T Gigabit Ethernet)
Certifications
- UL listed
- RoHS compliant
Environmental
- Dimensions: 482 mm (W) x 43 mm (H) x 109 mm (D) (19 x 1.7 x 4.29 in.)
- Horizontal distance between left and right mounting holes: 465 mm (18.3 in.)
- Vertical distance between top and bottom mounting holes: 31.8 mm (1.25 in.)
- Weight: 2.0 kg (4.4 lbs.)
- Operating temperature: -40 – 80°C (-40 – 176°F)
Package Contents:
- Cat5e Shielded Patch Panel
- 4 mounting screws
- Quick start guide
