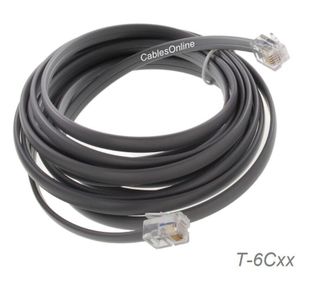

2ft RJ12 6P6C Flat Modular 26AWG Telephone Straight-Wired Cable, Gray

2ft RJ12 6P6C Flat Modular 26AWG Telephone Straight-Wired Cable, Gray
2ft RJ12 6P6C Flat Modular 26AWG Telephone Straight-Wired Cable, Gray
Item # T-6C02
Price: $4.95
Quantity:

Product Details

2ft RJ12 6P6C Flat Modular 26AWG Telephone Straight-Wired Cable, Gray


This Straight-Wired modular RJ12 6-position/6-conductor cable is ideal for multi-line office telephone systems, dumb-terminal installations and other serial/parallel applications with low data rate requirements

• Stranded construction for increased flexibility
• Flat design helps avoid cable kinking and stress
• Gold-plated contacts provide maximum conductivity and minimal data loss

• Straight Wining Pinout :

○ Pin-1 → Pin-1
○ Pin-2 → Pin-2
○ Pin-3 → Pin-3
○ Pin-4 → Pin-4
○ Pin-5 → Pin-5
○ Pin-6 → Pin-6


Specifications:


  • Connectors: (2) RJ-12 Male, 6P6C
  • Gold plated Contacts
  • 26 AWG conductor, stranded
  • Color: Gray
  • Length: 2ft

CablesOnline Part Number: T-6C02
