2ft XLR 5-Pin Female to 2x 3-Pin Male Stereo or Dual-Elements Microphone Cable
Product Details
2ft XLR 5-Pin Female to 2x 3-Pin Male Stereo or Dual-Elements Microphone Cable

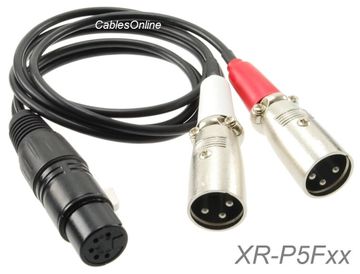

This XLR stereo or dual-elements microphone cable features an XLR 5-pin female connector on one end and 2 XLR 3-pin male connectors on the other end, the cable is suitable for microphones like : Shure VP88, Audio-Technica AE2500, Audio-Technica AT8022, Audio-Technica BP4025 and other mics with the following Pinout.
• Pin-1 Ground
• Pin-2 Left+
• Pin-3 Left-
• Pin-4 Right+
• Pin-5 Right-
• Pin-1 Screen/earth
• Pin-2 Left channel hot
• Pin-3 Left channel cold
• Pin-4 Right channel hot
• Pin-5 Right channel cold
Specifications:
- XLR 5-Pin Female
- 2x XLR 3-Pin Male
- 2x Shielded 2 conductor flexible wires
- Jacket: PVC
- OD: 3.5mm
- Length: 2 feet
CablesOnline Part Number: XR-P5F02
