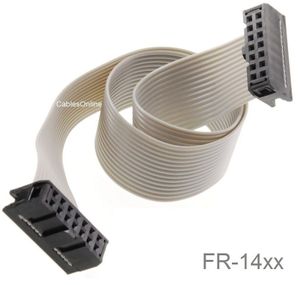

6in 14-Pin (2x7) Female to Female 2.54mm-Pitch 14-wire IDC Flat Ribbon Cable

6in 14-Pin (2x7) Female to Female 2.54mm-Pitch 14-wire IDC Flat Ribbon Cable
6in 14-Pin (2x7) Female to Female 2.54mm-Pitch 14-wire IDC Flat Ribbon Cable
Item # FR-1406
Price: $4.95
Quantity:

Product Details

6in 14-Pin (2x7) Female to Female 2.54mm-Pitch 14-wire IDC Flat Ribbon Cable


This 14-Pin (2x7) Female to Female 2.54mm-Pitch 14-wire IDC Flat Ribbon Cable features one 14-pin (2x7) connector on one end and one 14-pin (2x7) connector on the other end.


Specifications:


  • Connector A: IDC 14-Pin (2x7) Female Connector
  • Connector B: IDC 14-Pin (2x7) Female Connector
  • Sturdy nylon construction ribbon cable
  • Wire Gauge: 28AWG, Current Rating (per Wire): 1A, Voltage Rating: 300V
  • Operating Temperature Range: -20C to +105C
  • Length: 6 inches

CablesOnline Part Number: FR-1406
