6in 34-Pin (2x17) Female to Female 2.54mm-Pitch 34-wire IDC Flat Ribbon Cable

6in 34-Pin (2x17) Female to Female 2.54mm-Pitch 34-wire IDC Flat Ribbon Cable

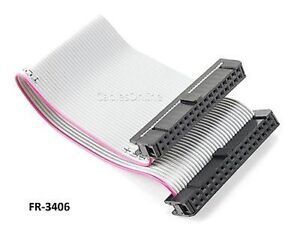

This 34-Pin (2x17) Female to Female 2.54mm-Pitch 34-wire IDC Flat Ribbon Cable features one 34-pin (2x17) connector on one end and one 34-pin (2x17) connector on the other end.

Specifications:

• Connector A: IDC 34-Pin (2x17) Female Connector
• Connector B: IDC 34-Pin (2x17) Female Connector
• Sturdy nylon construction ribbon cable
• Wire Gauge: 28AWG, Current Rating (per Wire): 1A, Voltage Rating: 300V
• Operating Temperature Range: -20°C to +105°C
• Length: 6 inches

CablesOnline Part Number: FR-3406
