FireWire 1394b/1394a (1A 6-Pin/2B 9-Pin) PCI Express Card

FireWire 1394b/1394a (1A 6-Pin/2B 9-Pin) PCI Express Card
FireWire 1394b/1394a (1A 6-Pin/2B 9-Pin) PCI Express Card
Item # FW-PE22
Price: $31.99
Quantity:

Product Details

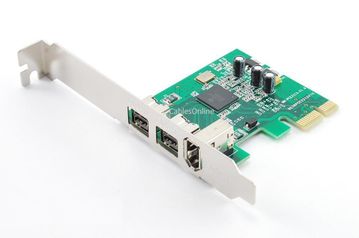

FireWire 1394b/1394a (2B 1A) PCI Express Card with Standard Bracket



Features:


  • 1-Lane (x1) PCI-Express with transfer rate 2.5Gbps Full Duplex channel
  • 2x 1394B firewire ports + 1x 1394A firewire port + 1x 1394A firewire internal header
  • Compliant with PCI-Express Revision 1.0a
  • Compliant with 1394 Open Host Controller Interface (OHCI) specification Revision 1.1 and 1.2 draft
  • Support provisions of IEEE Standard P1394b-2002
  • Support 800 / 400 / 200 / 100Mbps transfer rate
  • Fully Plug & Play and Hot Plug supported
  • Fully backward compatible to 1394a specification
  • Compliant with IEEE 1394a-2000 and 1394-1995 standard for a High-Performance Serial Bus
  • Fully interoperable with Firewire, iLink and SB1394a implementation of IEEE 1394 standard
  • Equipped with Bilingual IEEE Standard 1394b-2002 ports for 800Mbps data transferring


Hardware & Software Requirements:

  • Computer with PCI-Express
  • Software driver supports for Windows 98SE/ME/2000/Server 2003/XP-32ibt/Xp-64bit, Vista 32-bit/Vista-64bit, Mac OS

Package Includes:

  • PCI-Express IEEE 1394B firewire controller card
  • User manual
  • FireWire Cable
