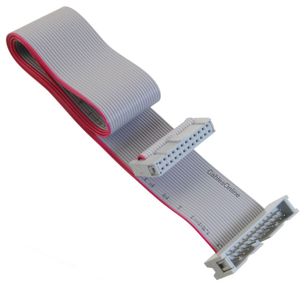

24-inches 24-Pin (2x12) 2.54mm-Pitch Male to Female IDC 24-Wire Flat Ribbon Extension Cable
Product Details
24-inches 24-Pin (2x12) 2.54mm-Pitch Male to Female IDC 24-Wire Flat Ribbon Extension Cable
These 24-Pin (2x12) Male to Female 2.54mm-Pitch 24-wire IDC Flat Ribbon Cable features one 24-pin (2x12) male connector on one end and one 24-pin (2x12) female connector on the other end.
Specifications:
- Connector A: IDC 24-Pin (2x12) 2.54mm-Pitch Male Connector
- Connector B: IDC 24-Pin (2x12) 2.54mm-Pitch Female Connector
- Sturdy nylon construction ribbon cable
- Current Rating (per Wire): 1A, Voltage Rating: 300V
- Operating Temperature Range: -20°C to +105°C
- Connector Pitch: 2.54mm
- Wire Pitch: 1.27mm
- Wire Gauge: 28AWG
- Wire Width: 1.2-inch (30.48mm)
- Length: 24 inches
CablesOnline Part Number: FR-2424M
