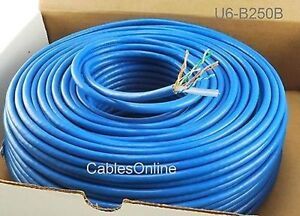

250ft Solid CAT6E CMR 550 Mhz, High-Performance 23 AWG Copper Bulk Cable, Blue

250ft Solid CAT6E CMR 550 Mhz, High-Performance 23 AWG Copper Bulk Cable, Blue
250ft Solid CAT6E CMR 550 Mhz, High-Performance 23 AWG Copper Bulk Cable, Blue
Item # U6-B250B
Price: $55.99
Quantity:

Product Details

250ft Solid CAT6E CMR 550 Mhz, High-Performance 23 AWG Copper Bulk Cable, Blue

These 250ft Ethernet cable rolls are ideal for installations and long runs.

Standards:

  • UTP Cable CAT6E, 23 AWG, 4 Pair W/HDPE Insulation and Flame-Retardant PVC Jacket
  • UL Listed Type CMR
  • C(UL) listed CMG FT4
  • ETL Listed Type CMR
  • C(ETL) listed CMG FT4
  • TIA/EIA?568-C.2, UL 1666 CMR RATED
  • IEC 61156 AND ANSI/TIA-568-C.2
  • ROHS Compliant
  • ATM 155 Mbps
  • Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
  • 1000 Mbps 1000BASE-T Gigabit Ethernet ˘ (IEEE 802.3)
  • 16 Mbps Token Ring˘ (IEEE 802.5)

Physical Characteristics:

  • Number of Conductor: Pairs 4
  • Gauge: 23 AWG
  • Stranding: Solid
  • Conductor Material: Solid Annealed Bare Copper
  • Rip Cord: Yes
  • Insulation Material: Polyethylene
  • Insulation Overall Diameter: 0.040 in. ▒ 0.0002 in.
  • Insulation Average Thickness: 0.0088 in.
  • Jacket: Flame Retardant PVC
  • Outer Jacket Average Wall Thickness: 0.023 in.
  • Outer Jacket Nominal O.D.: 0.244 in. ▒ 0.008 in.


CablesOnline Part Number:
U6-B250B
