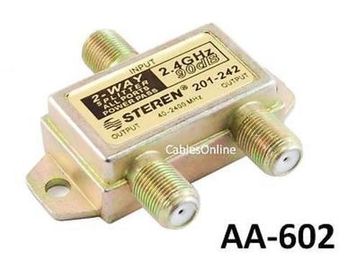

2-Way F-Type 2.4GHz 90dB Power Pass F-Splitter
Product Details
2-Way F-Type 2.4GHz 90dB Power Pass F-SplitterUse this F-Type splitter to enjoy improved signal transfer and maximum reliability. It features zinc-alloy cast housing with mounting tabs and an epoxy-sealed backing for outstanding corrosion resistance.
Features:- 90 dB min RFI Shielding
- Suitable for Analog and Digital Satellite Applications
- Epoxy-Sealed Back-Cover
- High-Performance Printed-Board Circuitry
- Improved Hum Modulation and Inter-modulation
- Yellow-Chromate Plating
- Zinc-Alloy Cast Housing
- 3/8" Precision Machined F-Connector Threads
- Mounting Tabs with Screws
- Cast-In Ground Block
- DC Power Passing to One or All Ports for Remote LNB-Powering Applications and Powering Antenna Pre-Amplifier from Headend
- F-ports accommodate security tools
- DC Power Passing to All Ports
- DC Power Forward Bias
- Insertion Loss: 4.6 dB max.
- Port-Port Isolation: 15 dB min.
- Input Return Loss: 30 dB min.
CablesOnline Part Number: AA-602
