3 Port HDMI HDTV Digital Switch v1.3b w/ 10m Signal Repeater Equalized Chipset

3 Port HDMI HDTV Digital Switch v1.3b w/ 10m Signal Repeater Equalized Chipset
3 Port HDMI HDTV Digital Switch v1.3b w/ 10m Signal Repeater Equalized Chipset
Item # HS-A103
Price: $39.99
Quantity:

Product Details

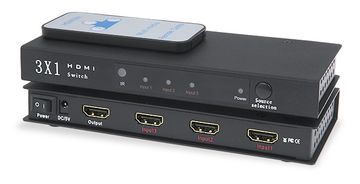

This 3x1 HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the three sources to display unit. Three inputs accommodate the simultaneous connection of up to three high definition video sources, such as satellite systems and HD DVD players. The output sends the high definition audio/video signals to a high definition display. Switching is done via the IR remote that is provided with the unit.

Features:

  • Switch easily between any three HDMI sources
  • 24k gold platted connector
  • Extends the range of HDMI compliant device by equalizing and re-clocking the HDMI signal
  • Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k and computer resolutions up to 1920 x 1200 are easil achieved.
  • Discrete IR remote (included)
  • HDMI pass-through
  • Power supply included with remote
  • Build in repeater equalizer chipset can boost digital HD signal length up to 10m Input/Output.


  • Specifications:

    Video Amplifier Bandwidth ................................................................... 140MHz
    Input Video Signal .......................................................................0.5-1.0 volts p-p
    Input DDC Signal ........................................................................5 volts p-p (TTL)
    Maximum Single Link Range ....................................................1280 x 1024, 1080p
    DTV / HDTV ............................................480i/576i/480p/576p/720p/1080i/1080p
    Output Video .........................................................HDMI v1.3+HDCP 1.0/1.1/1.2
    Power Consumption .........................................................................15 Watts(max)
    Power Supply ............................................................................................ 5VDC
