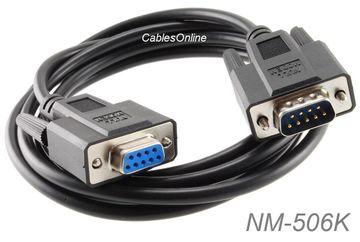

6ft DB9 Null Modem Male/Female Serial Cable, Black
Product Details
6ft DB9 Null Modem Male/Female Serial Cable, Black - CablesOnline NM-506
This null modem cable allows two serial DTE devices to communicate with each other without using a modem or a Data DCE device in between, this is achieved by crossing the wires between the two end of the cable. pin2 is connected to pin3 and pin3 is connected to pin2, the transmit pin is connected to the receive pin and vise versa.
• Pin Out: (1,6 - 4) , (2 - 3), (3 - 2), (4 - 1,6 ), (5 - 5), (7 - 8), (8 - 7), (Shield-Shield)
• 28 AWG, 7 Conductors + Drain Wire
• OD: 5.0mm
• Length: 6 feet
• Color: Black
Specifications:
- (1) DB9 Male Plug
- (1) DB9 Female Jack
- Gold plating contacts
- Fully foil shielded to prevent unwanted EMI/RFI interference.
- Fully molded connectors with #4/40 thumbscrews provide a quick and easy connection every time.
CablesOnline Part Number: NM-506K
