6in 34-Pin (2x17) 2.54mm-Pitch Male to Male 34-wire IDC Flat Ribbon Cable

6in 34-Pin (2x17) 2.54mm-Pitch Male to Male 34-wire IDC Flat Ribbon Cable
6in 34-Pin (2x17) 2.54mm-Pitch Male to Male 34-wire IDC Flat Ribbon Cable
Item # FF-G06
Price: $9.95
Quantity:

Product Details

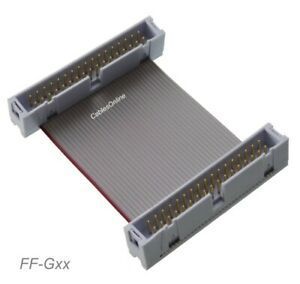

6in 34-Pin (2x17) 2.54mm-Pitch Male to Male 34-wire IDC Flat Ribbon Cable


These 34-Pin (2x17) Male to Male 2.54mm-Pitch 34-wire Flat Ribbon Cable features one 34-Pin (2x17) Male connector on one end and one 34-Pin (2x17) Male connector on the other end.

Connect Two 34-Pin Cables together
Change a 34-Pin Cable from Female to Male


Specifications:


  • Connector A: 34-Pin Male IDC Connector, 2.54mm pitch
  • Connector B: 34-Pin Male IDC Connector, 2.54mm pitch
  • Sturdy nylon construction ribbon cable
  • Number of Wires: 34, Pitch: 1.27mm, Wire Gauge: 28AWG, Current Rating (per Wire): 1A
  • Voltage Rating: 300V. , Operating Temperature Range: -20C to +105C
  • Length: 6 inches

CablesOnline Part Number: FF-G06
